Pneumatic Piling Hammer 700N – Medium-Duty Air Hammer
A compact pneumatic piling hammer providing high blow rates and controlled impact energy for sheet pile and small steel pile installation in confined marine environments.
Pneumatic Piling Hammer 700N

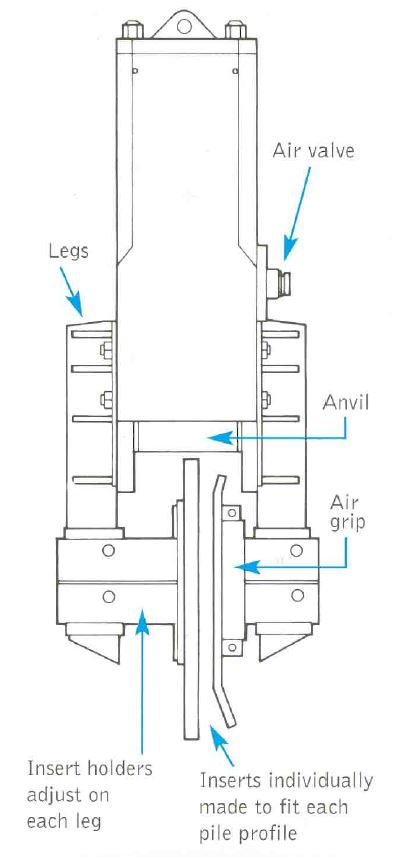

This Pneumatic Piling Hammer 700N uses a 385 kg ram to deliver up to 650 kg·m of impact energy at blow rates up to 225 bpm, making it suited to small and medium-scale civil and marine piling tasks. The hammer requires 17 m³ of air at 7 bar supplied through a 51 mm hose, ensuring stable and regulated impact force. It weighs 3006 kg with legs fitted and offers interchangeable anvils — 457 mm and 711 mm wide — supporting a range of pile profiles. Its compact footprint and 2420 mm working height make it ideal for restricted spaces such as cofferdams, waterfronts and tidal works.
Areas we service

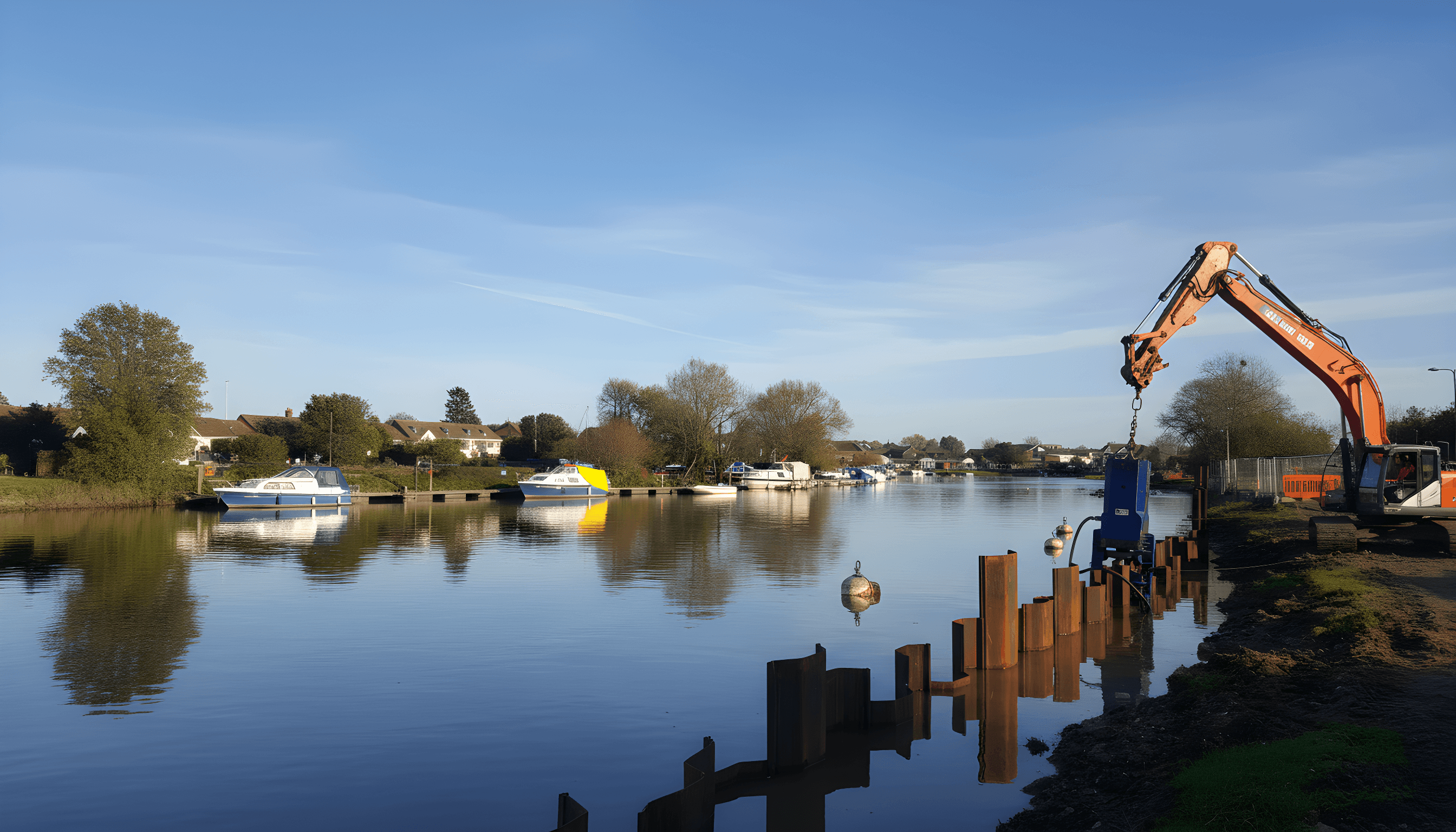

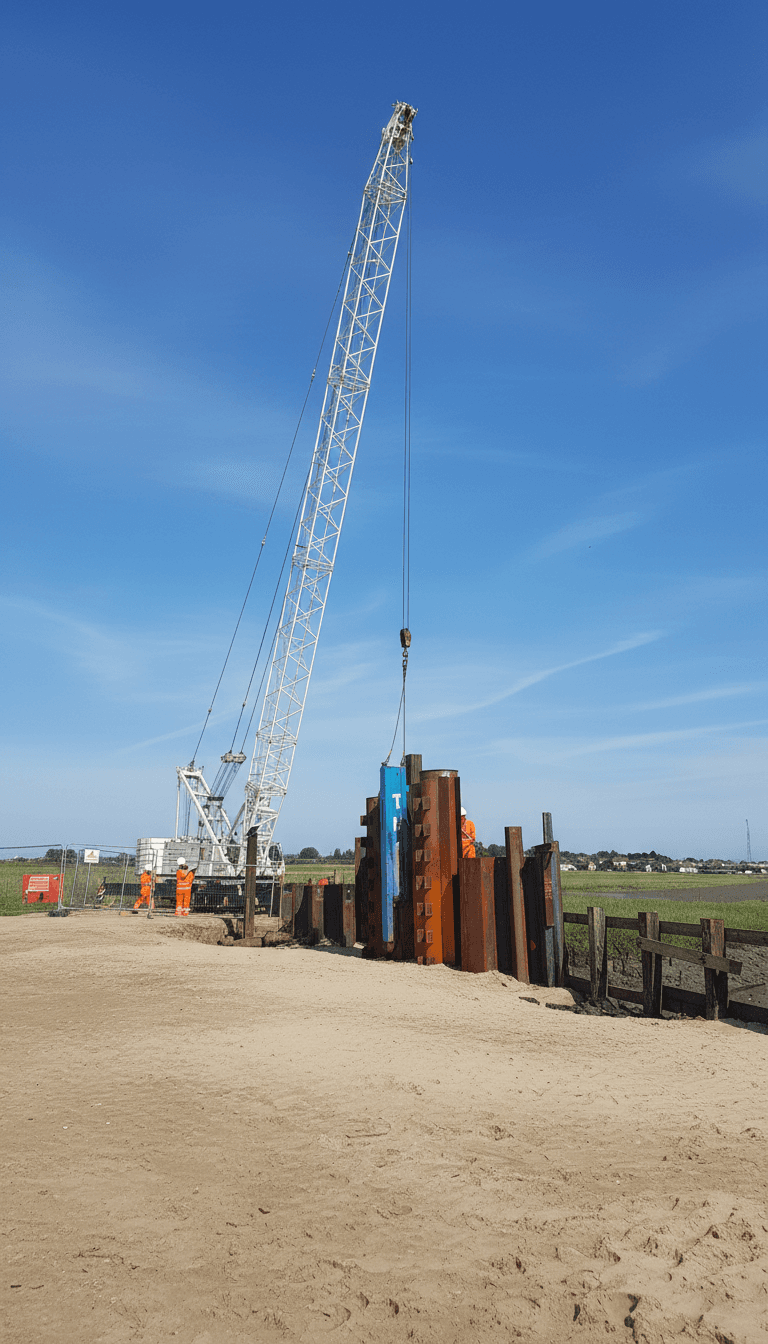

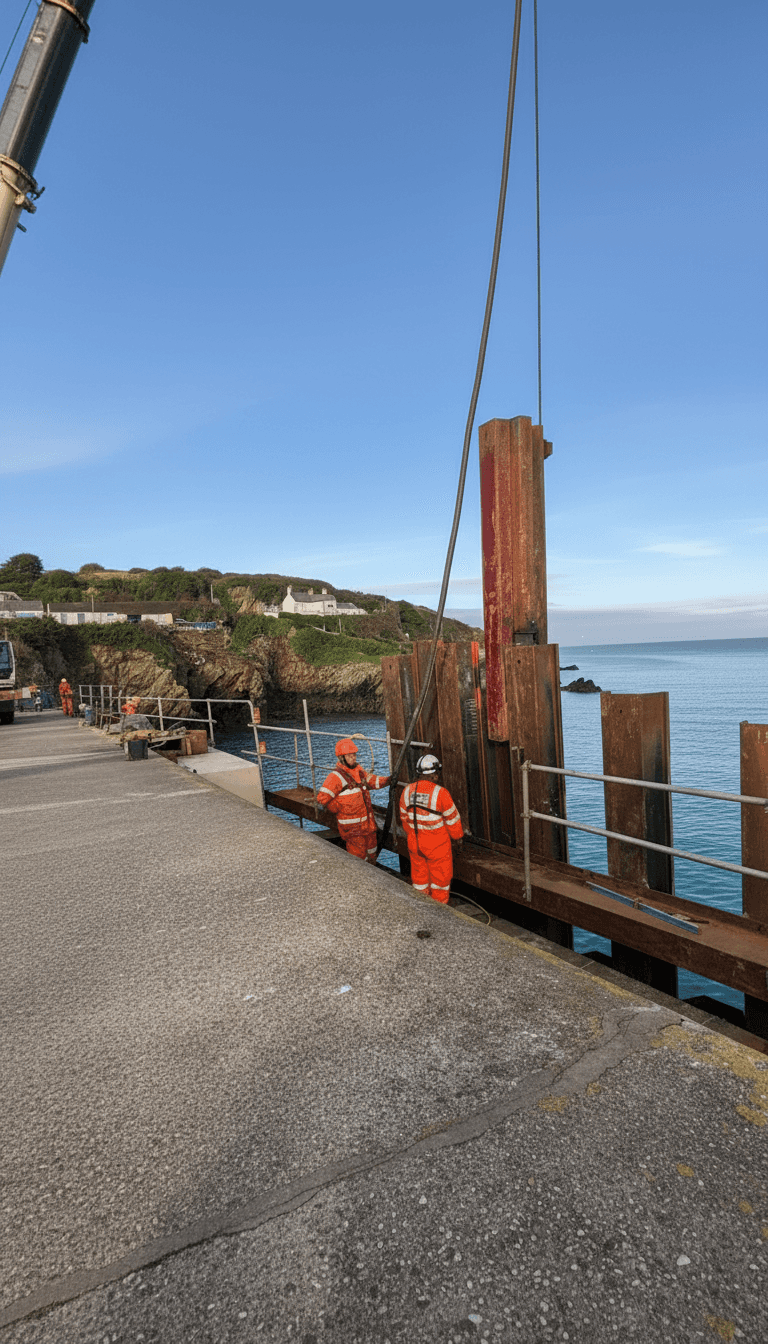

Our vessels and equipment are available for hire across the UK, supporting marine projects on the Thames and London waterways, the South Coast and Medway, the Bristol Channel and ports throughout Devon and Cornwall. We regularly work across rivers, estuaries, harbours and coastal construction sites, with mobilisation to European locations also available for suitable projects.
