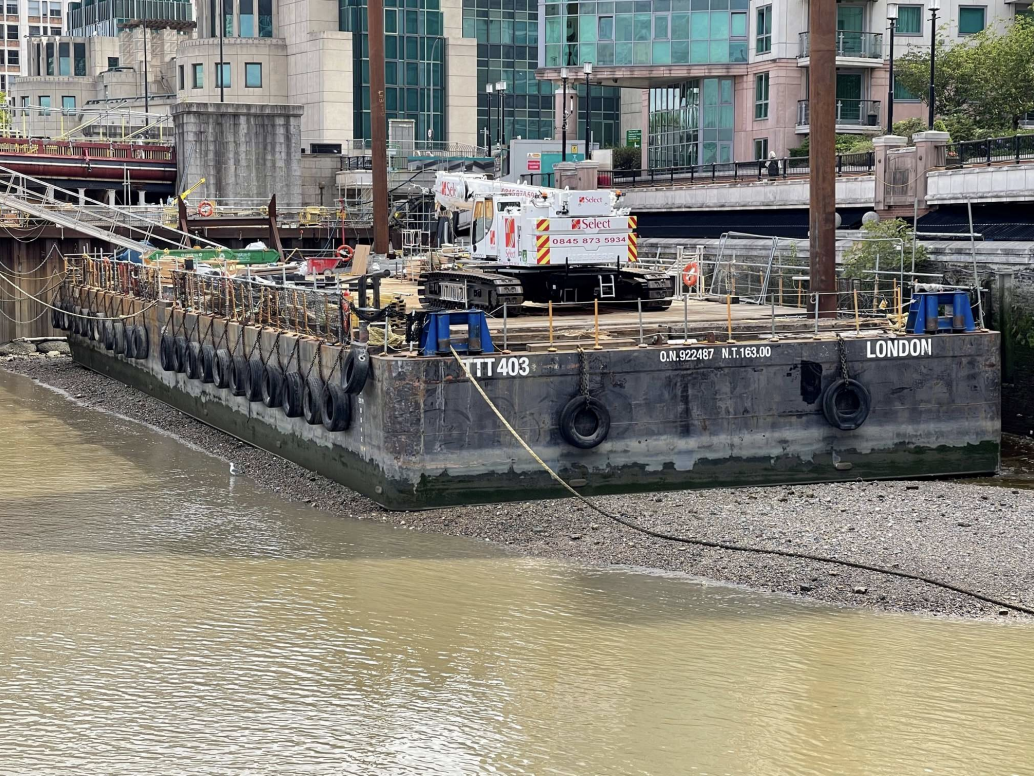

ttt-403
Flat Top Spud Leg Barge
overview
Type – Spudded Pontonn
Builder – Kriushinsky Shiprepair and Building Yard, Russia
Year of build – 2011
Typical Applications – Deck Cargo, RoRo Cargo, Crane Opoerations
Classification – Bureau Veritas, Pontoon, Unrestricted Navigation
Classification I.D No – 20663M
Flag – UK
Official No. – 922487
Length (LOA) – 50.00m
Beam – 14.00m
Depth – 3.00m
Max Draught – 2.322M
Gross Tonnage – 544
Net Tonnage – 163
Draught Marks – Fore, mid & aft on PS & SB
Deck Plate Thickness – 10mm
Deck Load – 6t/m2
Number of Compartments – 14no
Towing Brackets – One of PS and one on SB at foredeck
Bollards – 6no. double bollards
Fair Leads – One on PS and one on SB fwd and aft
Manholes – Flush bolted manholes
Spud Hole Foundations – 2no. on SB side.
2no. 610mm dia spud legs, 18m long.
Handrails all round mounted on breech bases.
Tyre fenders.
