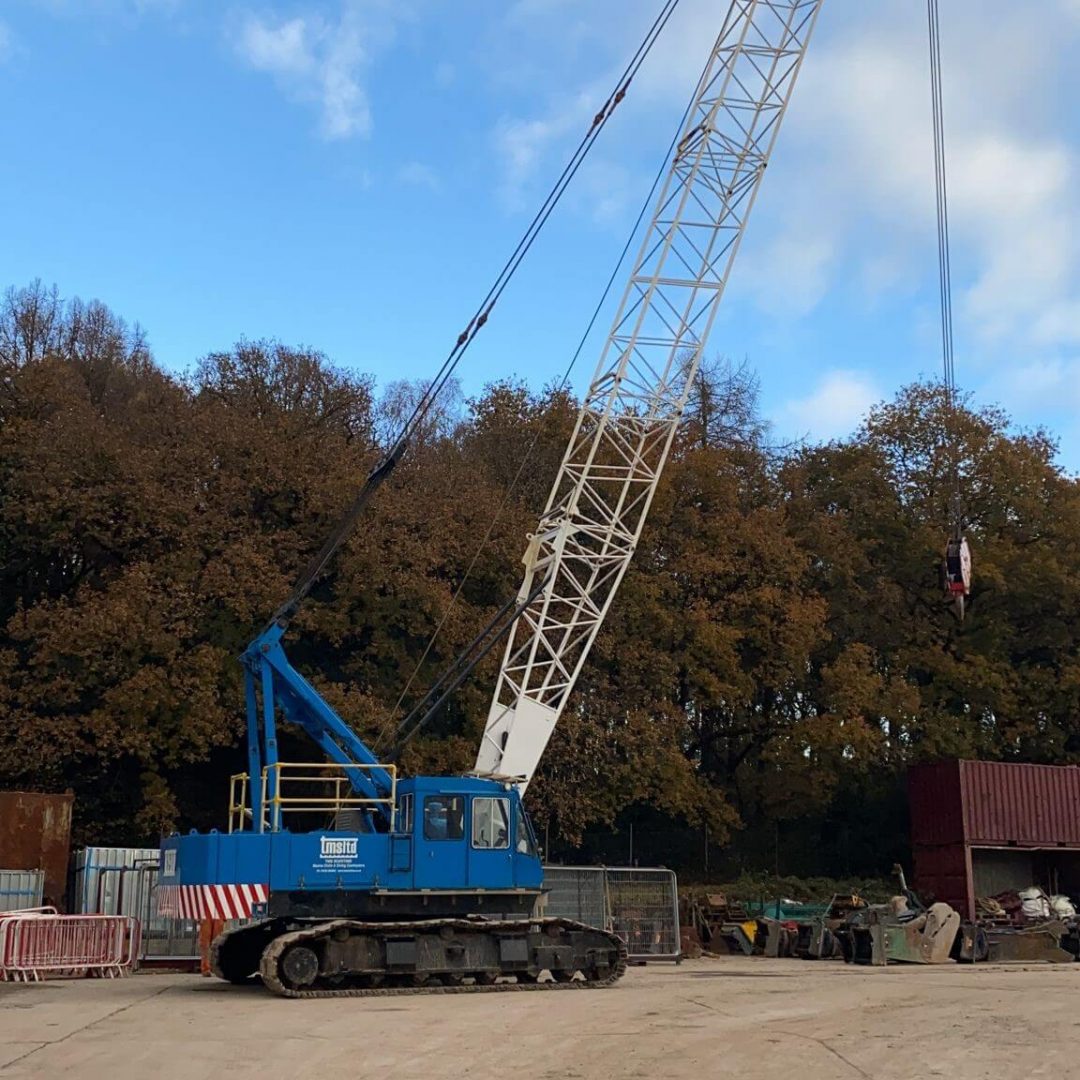

IHI DCH800 Crane

Max. lifting capacity × working radius

80 Tonnes × 3.7 metres

Max. boom length

55 metres

Max. boom length, with fly jib

62 metres (46m + 16m)

Rope Speed Main drum hoist/lowering

*70 / 35 m/min

Rope Speed Aux. drum hoist/lowering

*70 / 35 m/min

Rope Speed Boom drum hoist/lowering

*68 m/min

Part Lines 80 Tonne Hook Block

8 Part Line

Part Lines 10 Tonne Hook Block

Single Line

Part Lines Boom drum hoist/lowering

12 Part Line

Total operating weight (13 m Boom)

75.4 Tonnes (Approx.)

Counterweight

23.0 Tonnes

Average ground bearing pressure

85.3kPa (0.87kg/cm2 )
