Damen 2611 Multicat Workboat

A triple-screw ultra shallow draft Multicat Damen 2611, BV Class for unrestricted navigation and bollard pull of 27 tonnes

[

about

]

Tom Scruby

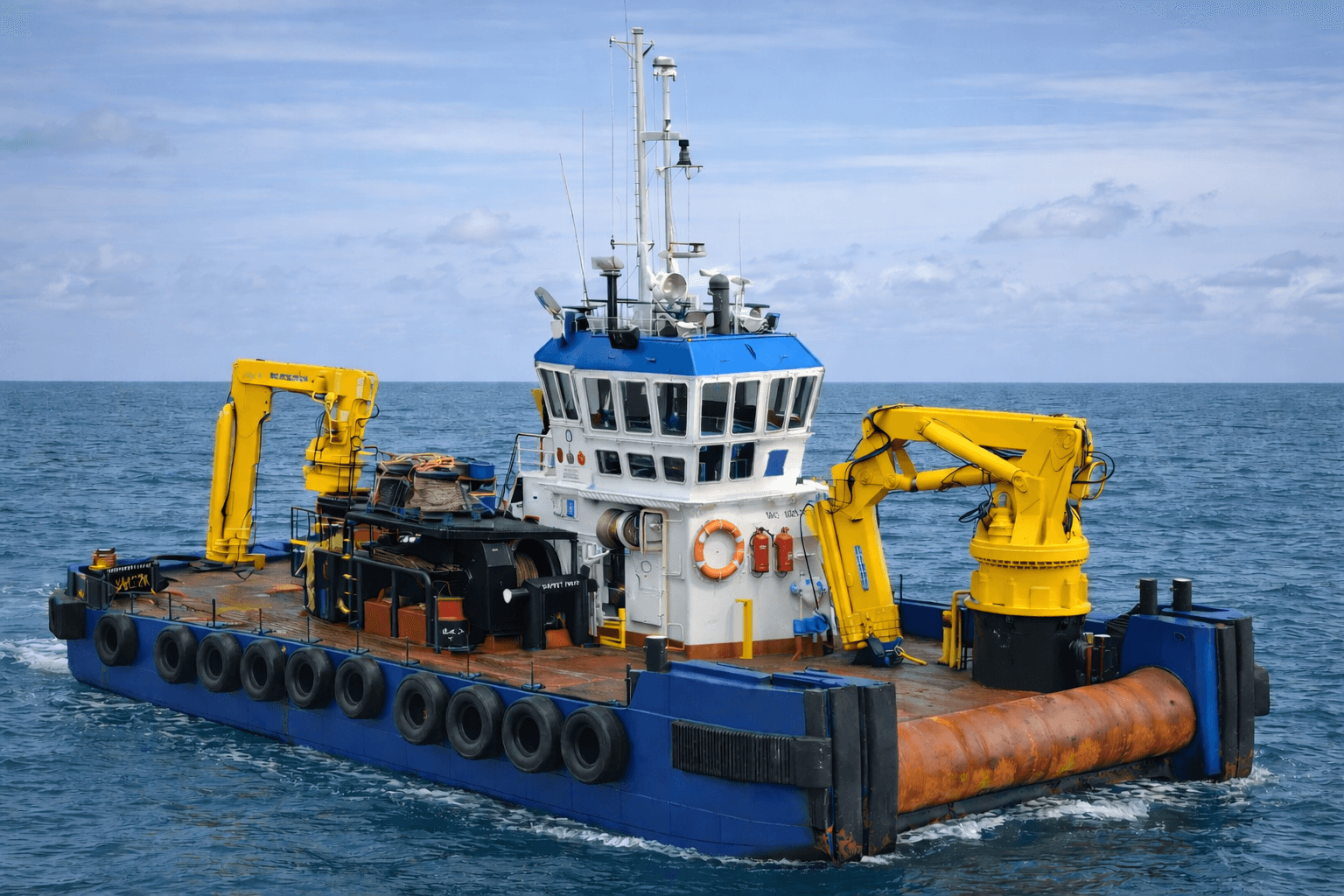

Tom Scruby is a triple-screw, ultra-shallow draft multicat vessel built to the proven Damen 2611 design. Constructed by Damen Shipyards in the Netherlands in 2003, she holds Bureau Veritas (BV) classification for unrestricted navigation and delivers a bollard pull of 27 tonnes. The Damen 2611 is recognised as a versatile and highly capable workboat, providing a stable and seaworthy platform for a wide range of marine operations. Its wide, flat deck, shallow draft, powerful cranes and heavy-duty winches make it ideally suited to towing, dredging, diving and surveying activities. Designed to support the full spectrum of marine civil engineering projects, Tom Scruby can operate efficiently in both shallow and deeper-water environments, offering the flexibility and reliability required for complex marine construction and maintenance works.

General

Triple Screw Ultra Shallow Draft Multicat

Damen 2611 Design

Built 2003, Damen Shipyard, NL

BV Class for Unrestricted Navigation

Bollard Pull - 27

Dimensions

Length overall: 26.00m

Beam: 11.50m

Max draft: 1.9m

Gross tonnage: 167t

Net tonnage: 167

Propulsion & Performance

Main Engines: 3 x Cummins KTA19.M3:2100BHP

Free Running Speed: 10kts Max / 7kts Eco

Tanks: Fuel 140,000 ltrs / Water 60,000 ltrs

Bowthruster: 325 BH

Deck & Operational Equipment

30t towing winch, 80t working winch

8t tugger winch

Push bow / bow roller

160t/m crane FWD: 13.5t/11.6m 80t/m crane

AFT: 11.2t/11.6m

Towing pins

Timber covered deck: 135m

Navigation & Communication

Accomodation

MLC Standard

3 x 2-berth crew cabins

Galley

Mess room

Changing room
